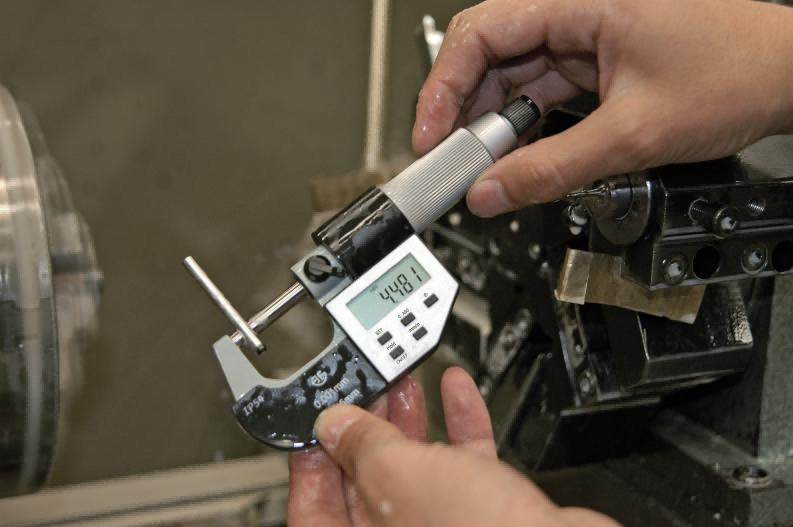

外径千分尺
方便单手使用。
IP54防护等级。
通电后，显示值即为绝对测量的起始值。
硬质合金测量面。
棘轮套测力。
| 货号 | 测量范围 | 精度 | 分辨力 |
|---|---|---|---|
| 132-01-040 | 0-25mm | ±0.002mm | 0.001mm |
| 132-02-040 | 25-50mm | ±0.002mm | 0.001mm |
| 132-03-040 | 50-75mm | ±0.003mm | 0.001mm |
| 132-04-040 | 75-100mm | ±0.003mm | 0.001mm |
| 132-05-040 | 100-125mm | ±0.003mm | 0.001mm |
| 132-06-040 | 125-150mm | ±0.003mm | 0.001mm |
| 132-07-040 | 150-175mm | ±0.004mm | 0.001mm |
| 132-08-040 | 175-200mm | ±0.004mm | 0.001mm |
| 测量范围 | A | B | C | L |
|---|---|---|---|---|
| 0-25mm | 6mm | 3.0mm | 24mm | 32mm |
| 25-50mm | 8mm | 3.0mm | 32mm | 57mm |
| 50-75mm | 8mm | 3.0mm | 45mm | 82mm |
| 75-100mm | 8mm | 3.0mm | 57mm | 107mm |
| 100-125mm | 8mm | 3.0mm | 70mm | 133mm |
| 125-150mm | 8mm | 3.0mm | 82mm | 158mm |
| 150-175mm | 8mm | 5.5mm | 95mm | 183mm |
| 175-200mm | 8mm | 5.5mm | 107mm | 209mm |
| 开/关键 | √ |
| 绝对/相对测量模式转换 | √ |
| 公制/英制测量模式转换 | √ |
| 绝对测量初始值设置键 | √ |
| 显示数据输出键 | √ |
| 数据保持 | √ |
| 电池型号 | CR2032 |
| 自动断电 | √ |
| RS232输出接口 | √ |
| 接口电缆（选配） | P1505 |
